How does it work?




Cell-Max is made of high-density polyethylene and manufactured in the USA. HDPE has been used for the most demanding industrial products since 1955.

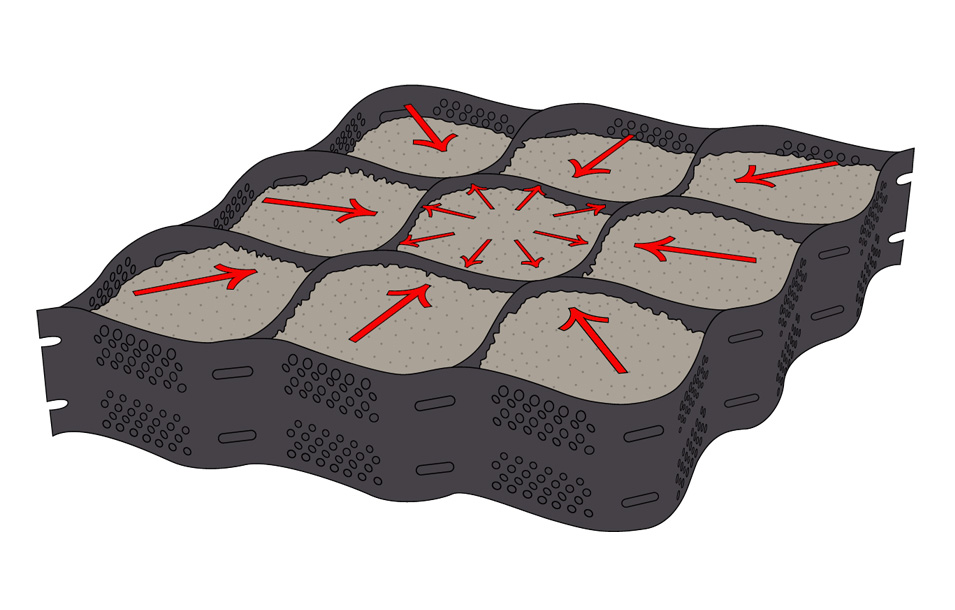

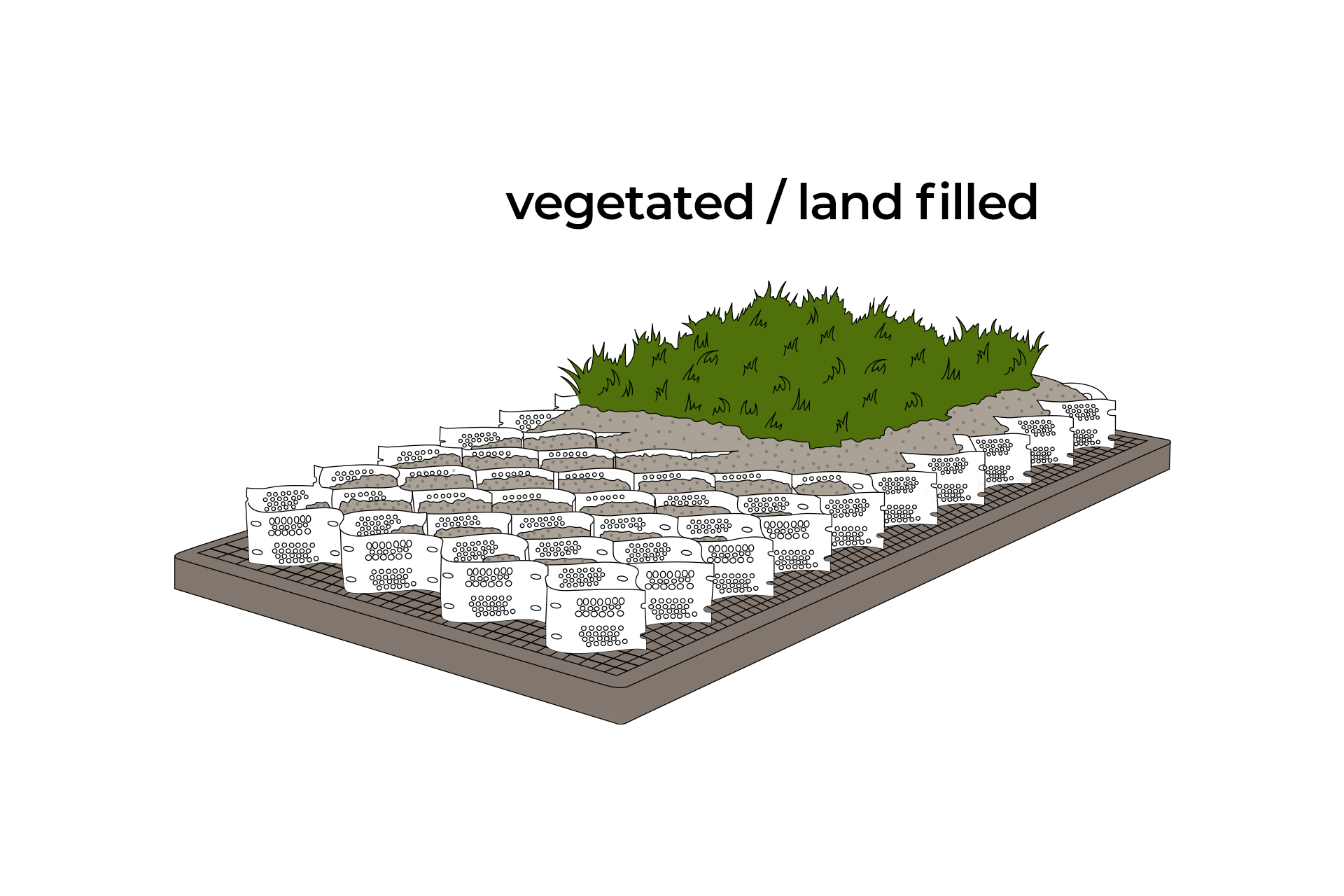

The threedimensional cells prevent lateral movement of the fill material, increasing structural strength by acting as protection against erosion. Cell walls are perforated to allow water to flow through the system, creating an enhanced root zone between cells for vegetated applications.

Once filled with concrete, the Cell-Max matrix becomes conforming to the shape of the structure. No other type of reinforcement is needed.






Since you have hundreds or thousands of "pockets" attached to each other, the fill material it is not allowed to move laterally; by giving that light padding much greater resistance, increasing the strength can reduce the amount of material needed.

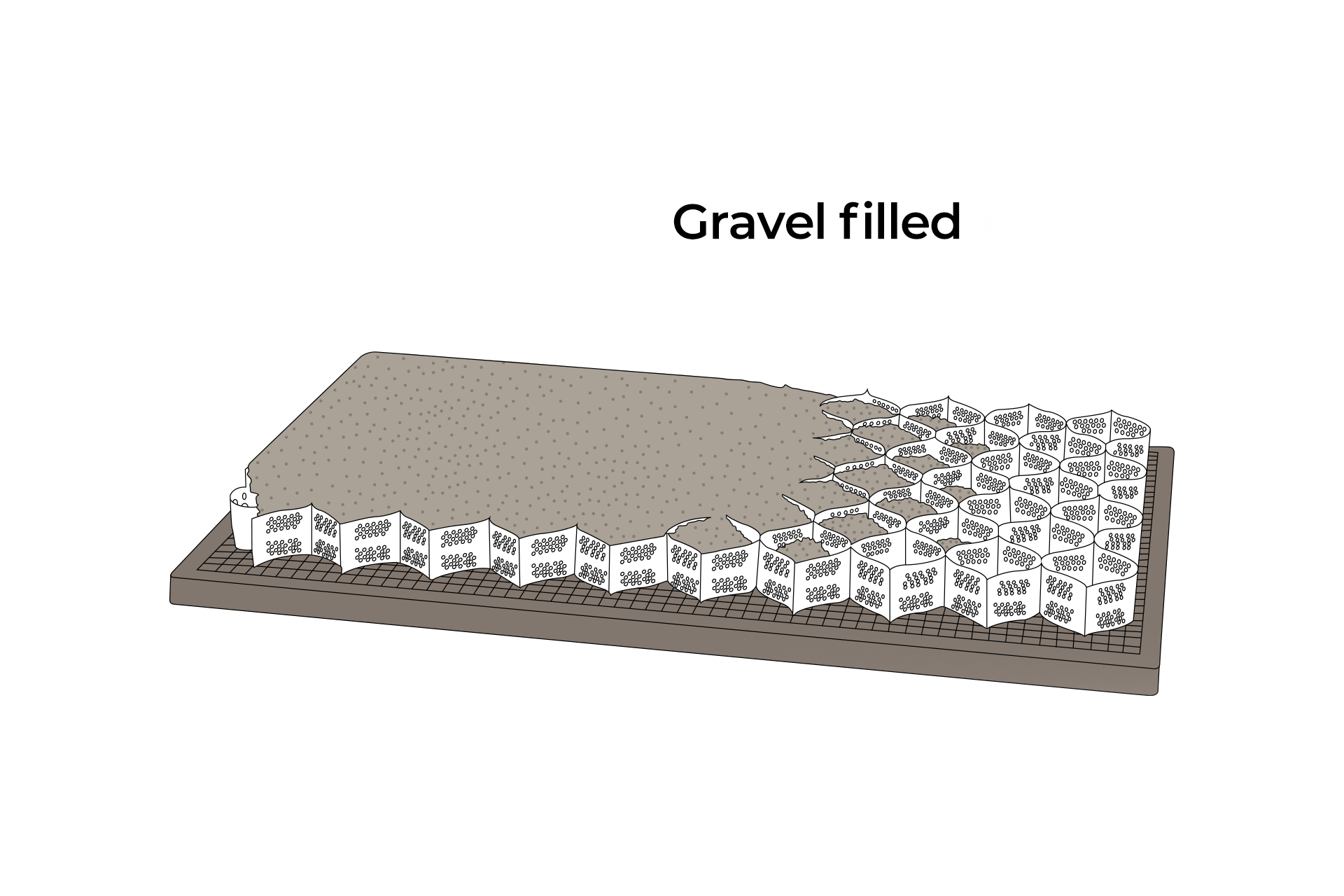

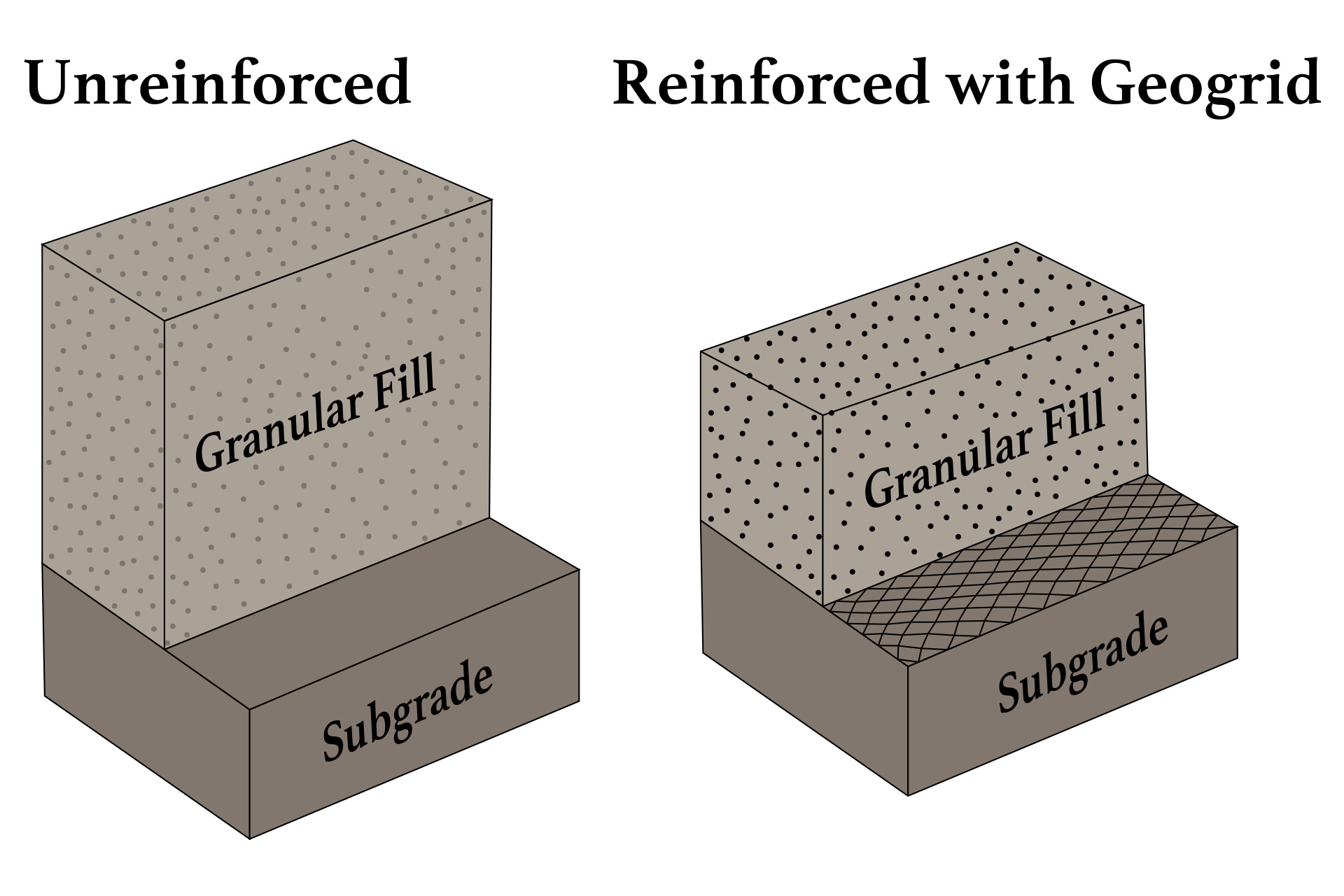

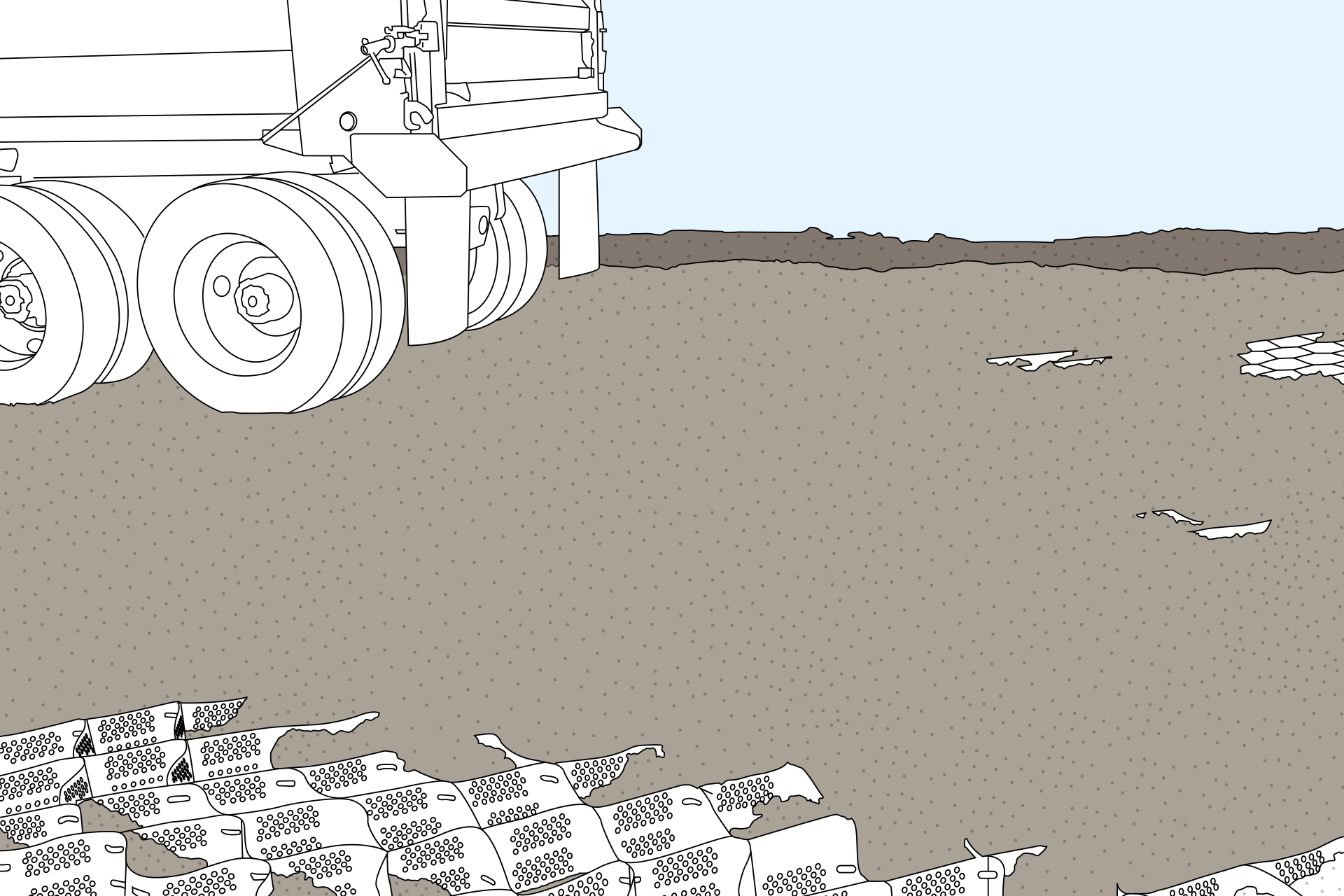

In a typical project where an engineer specifies 18 inches of fill material, using our CellMax geocell we can reduce the fill material to 6 inches; supplementing with lower quality filling materials. Once the fill material is inside the geocell, heavy equipment can be on top of it immediately

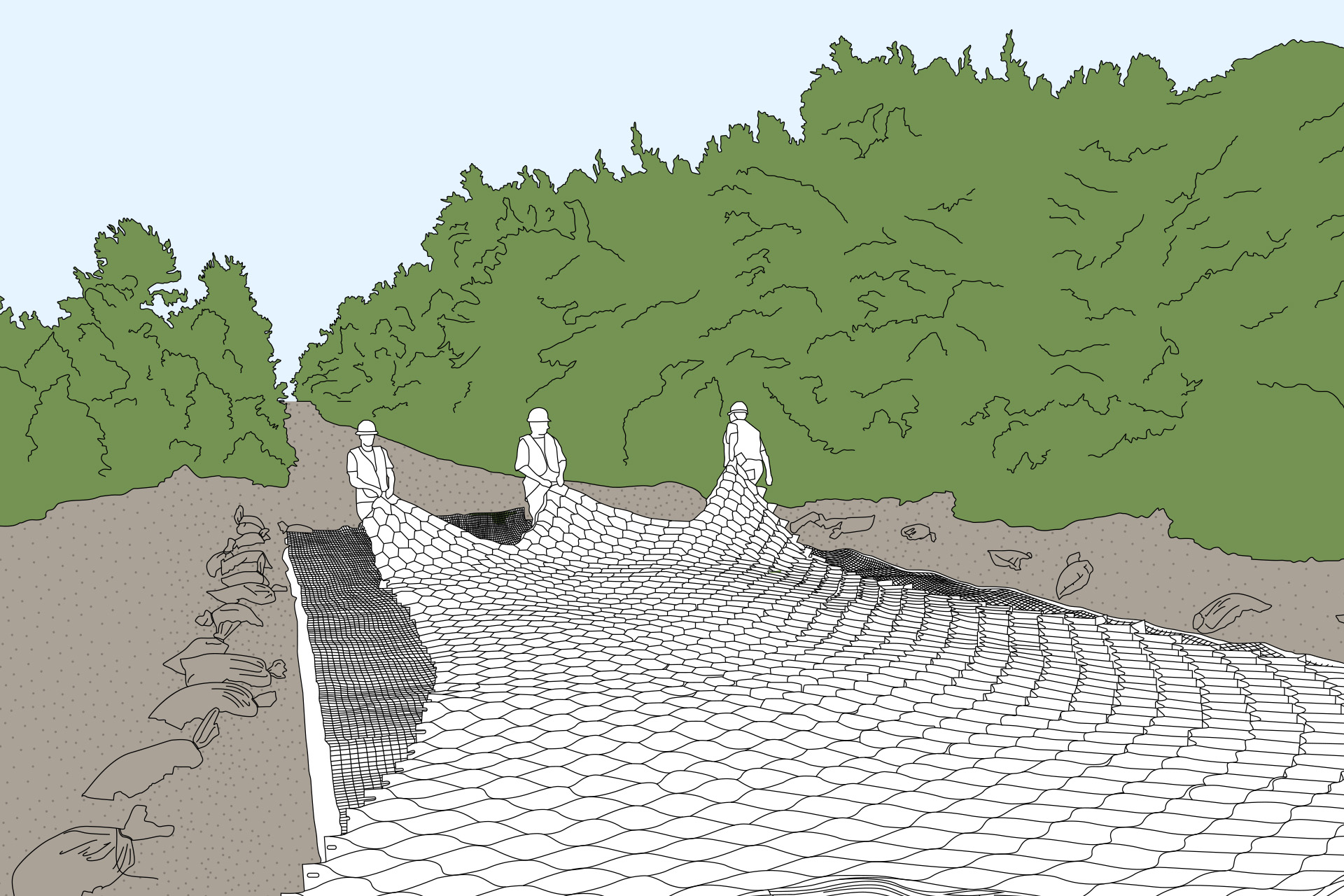

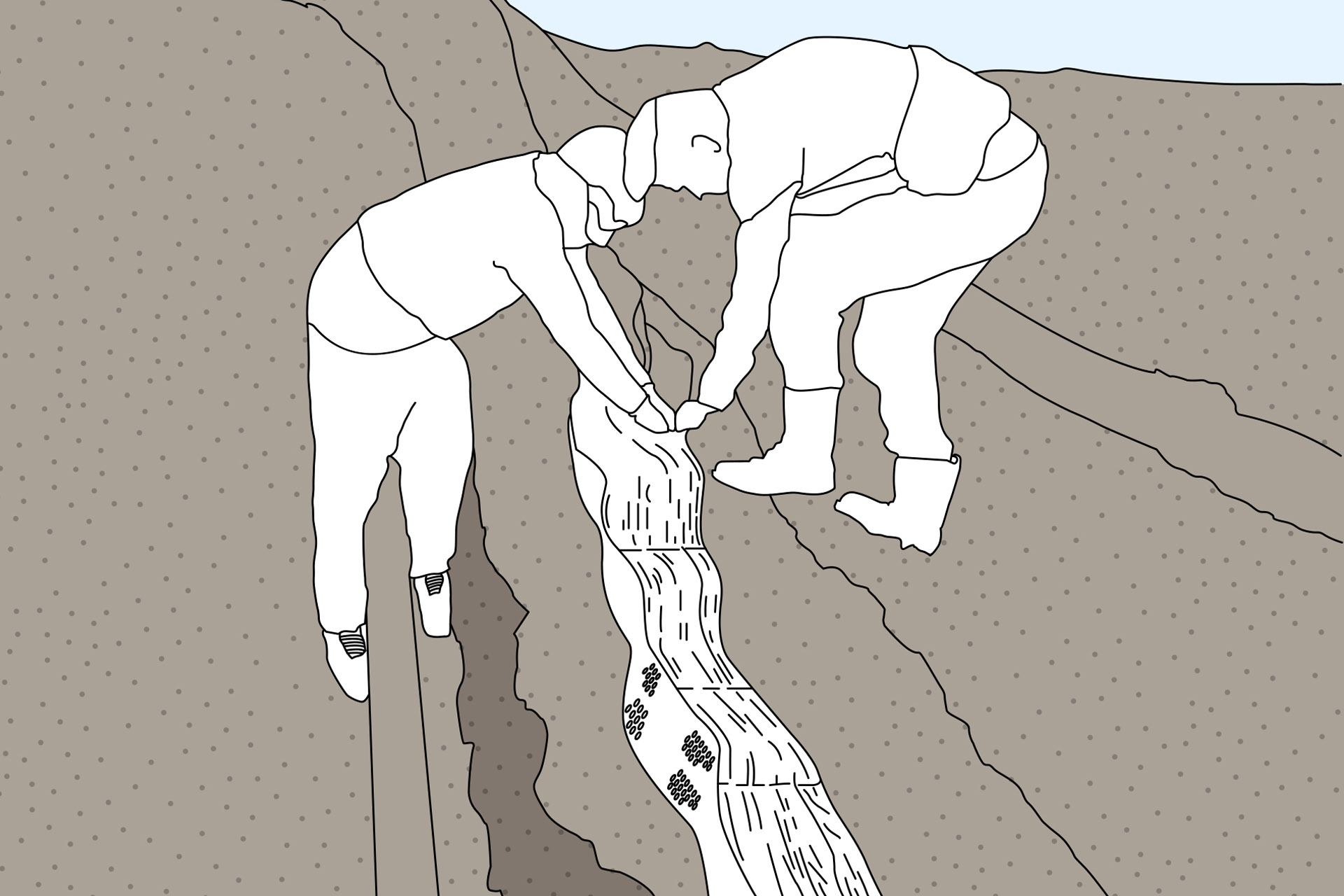

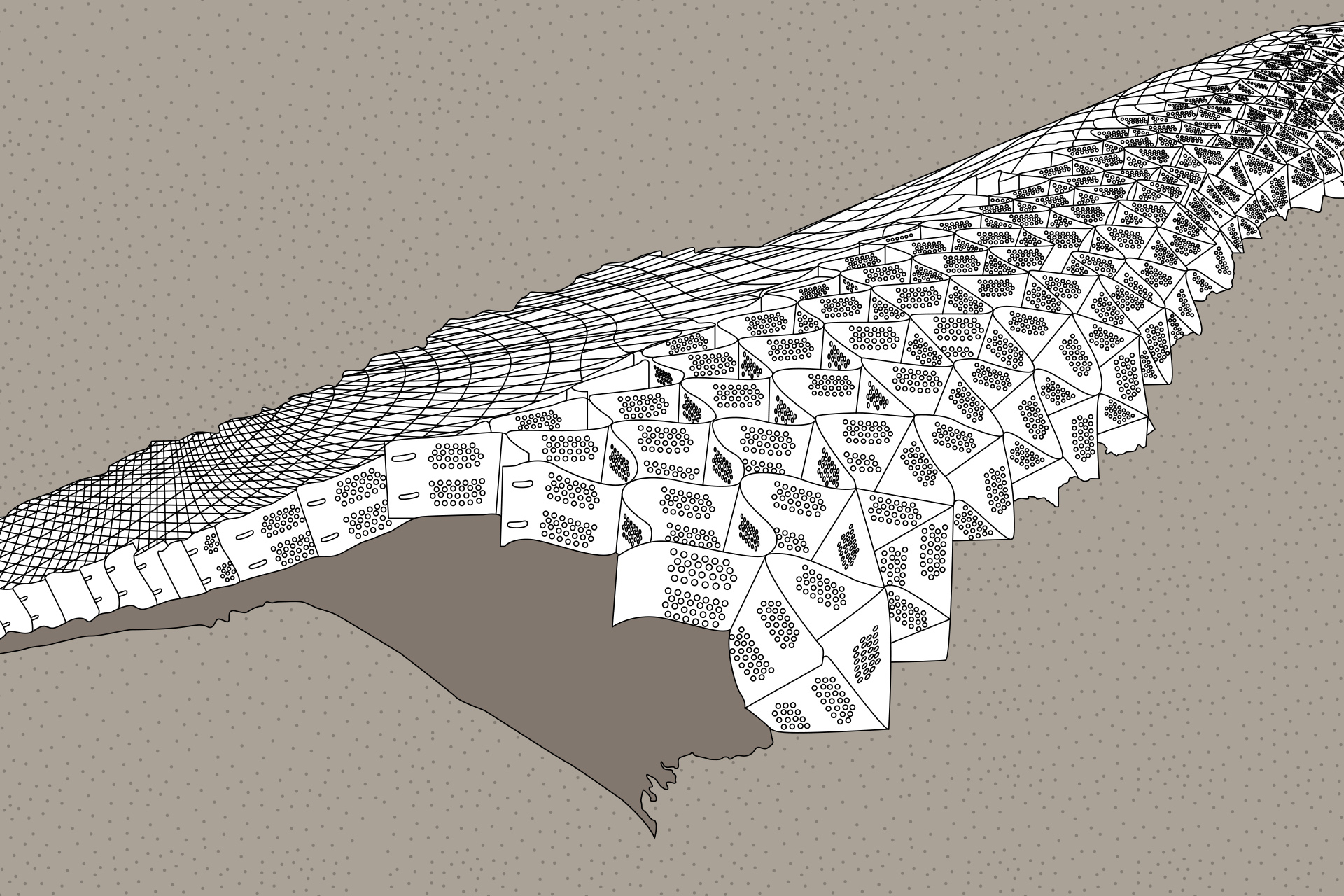

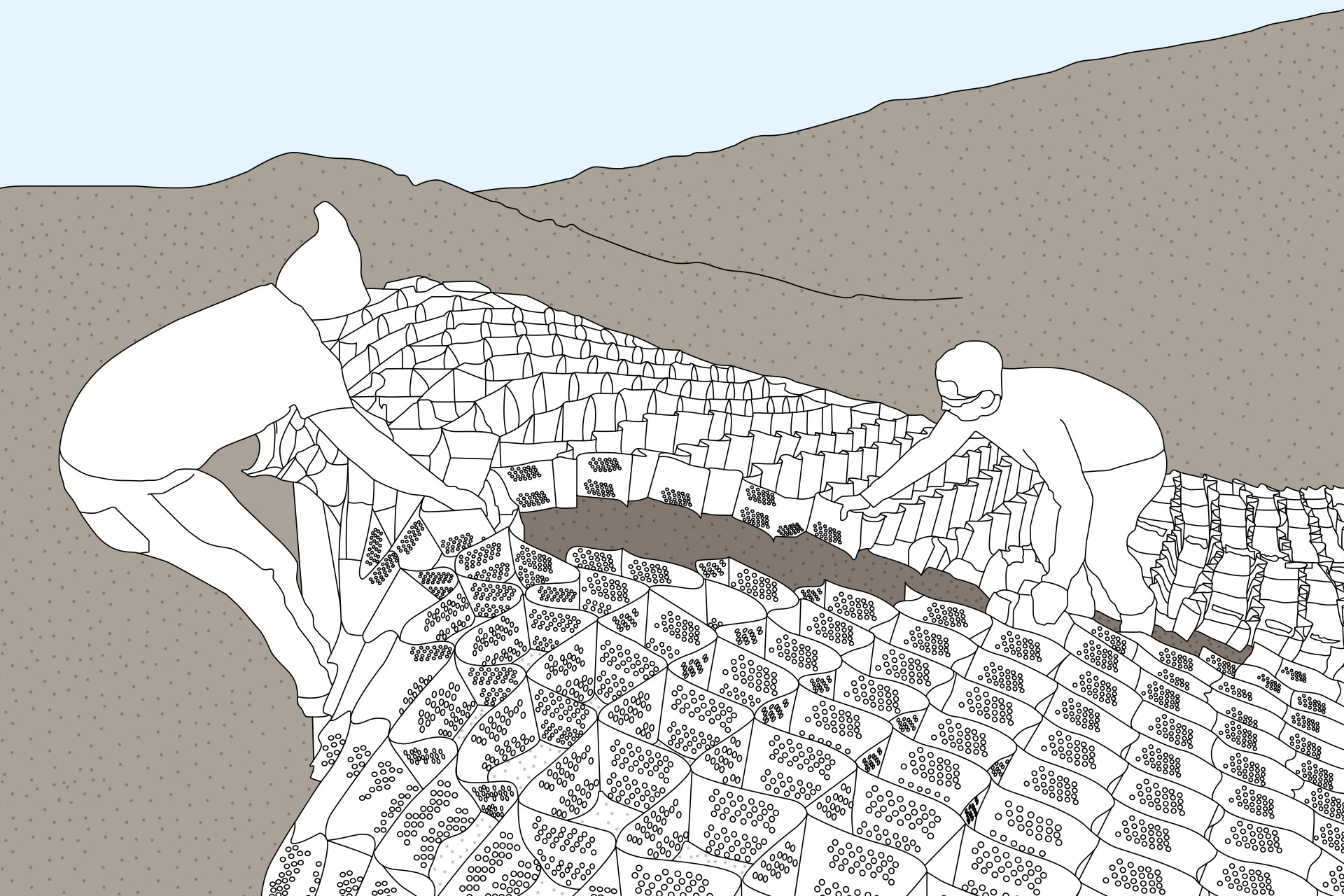

In addition to being used to stabilize subsoils, it can also be used to control erosion; it is sufficient to place Cell-Max on the slope to begin confining the area avoiding all erosion by prohibiting the movement of any material on the slope.



Can also be used ... in retaining walls

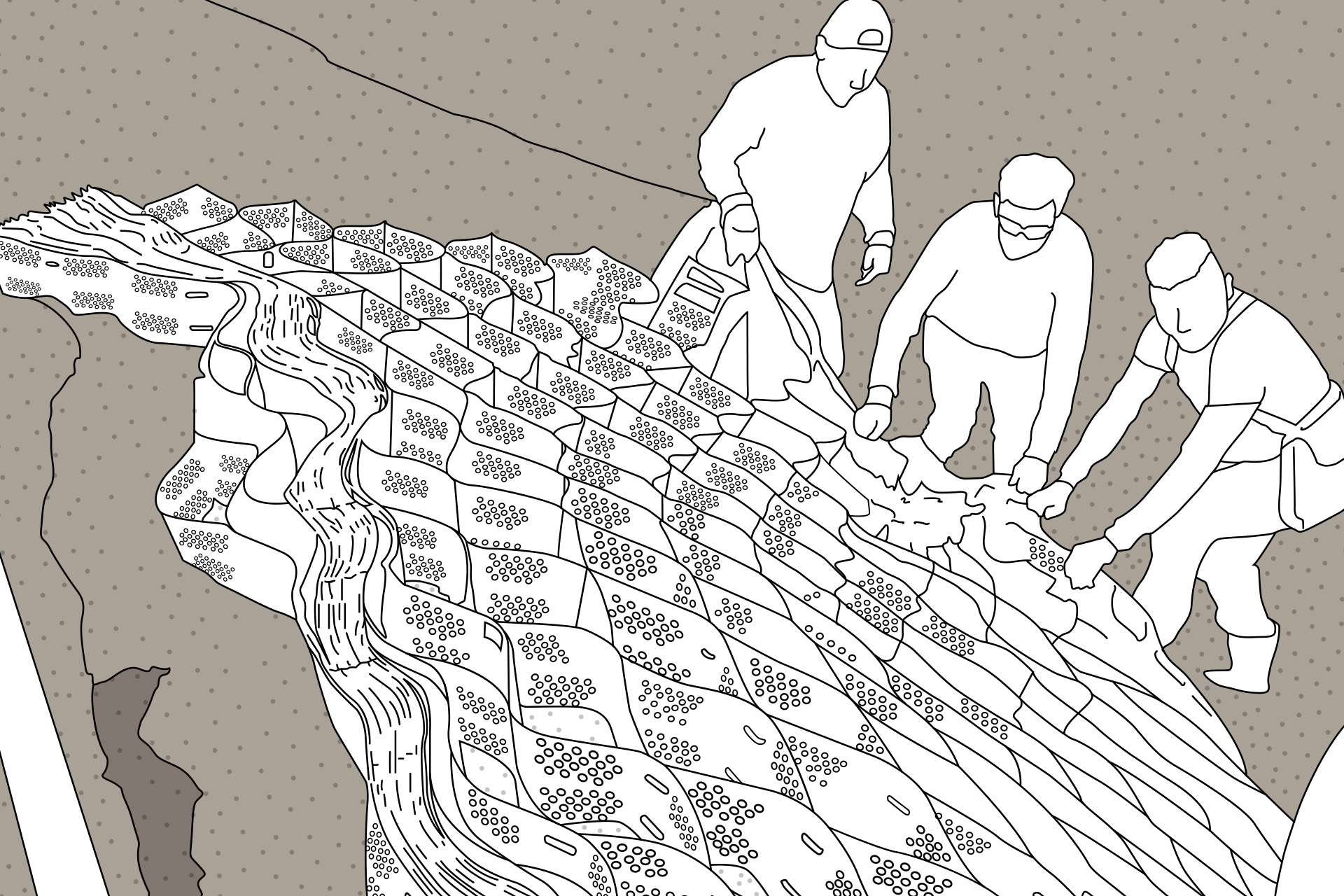

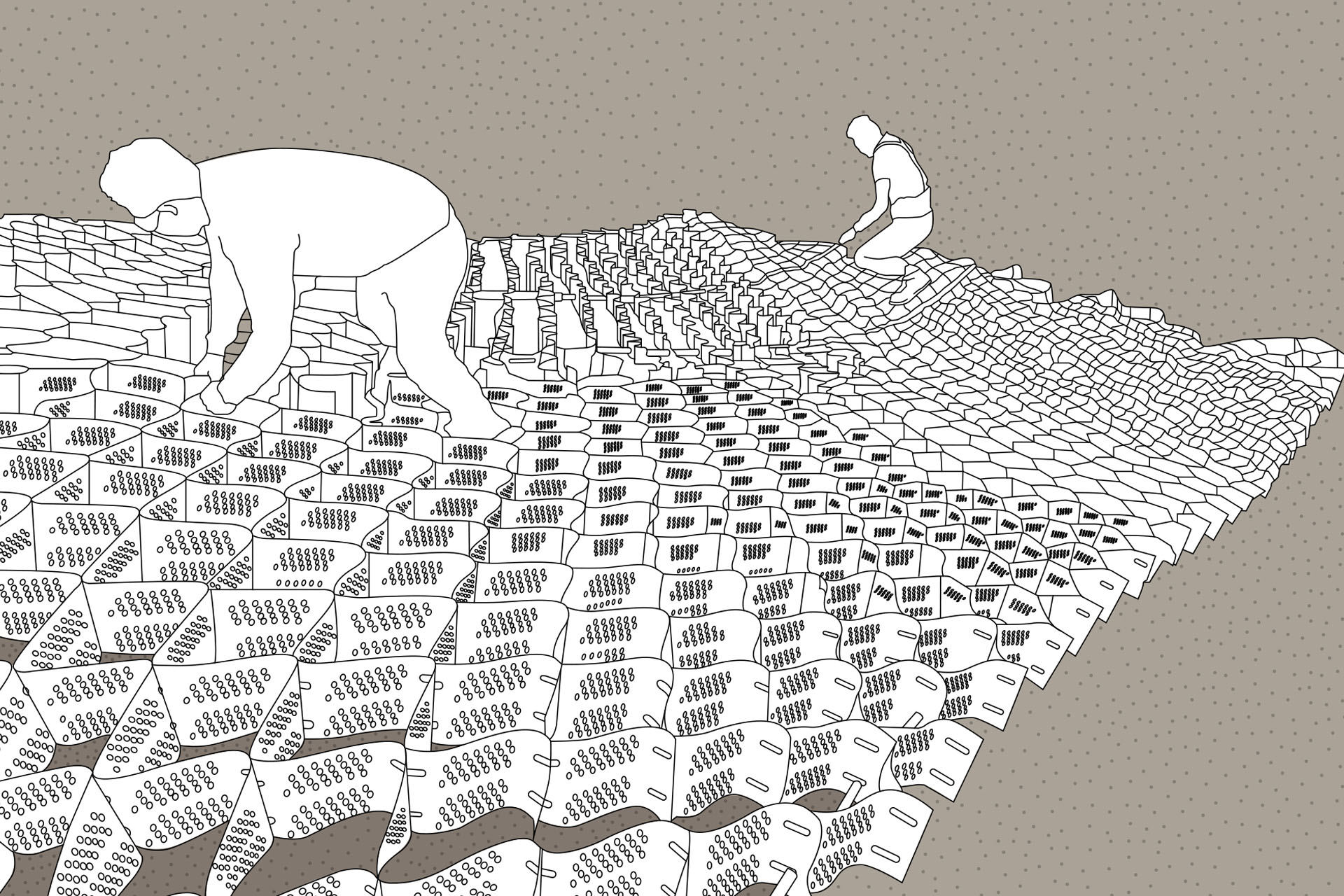

The material ships easily, it comes collapsed and unfolds in an accordion manner at the time of installation. The opening and the depth of the material are chosen according to the each specific project.

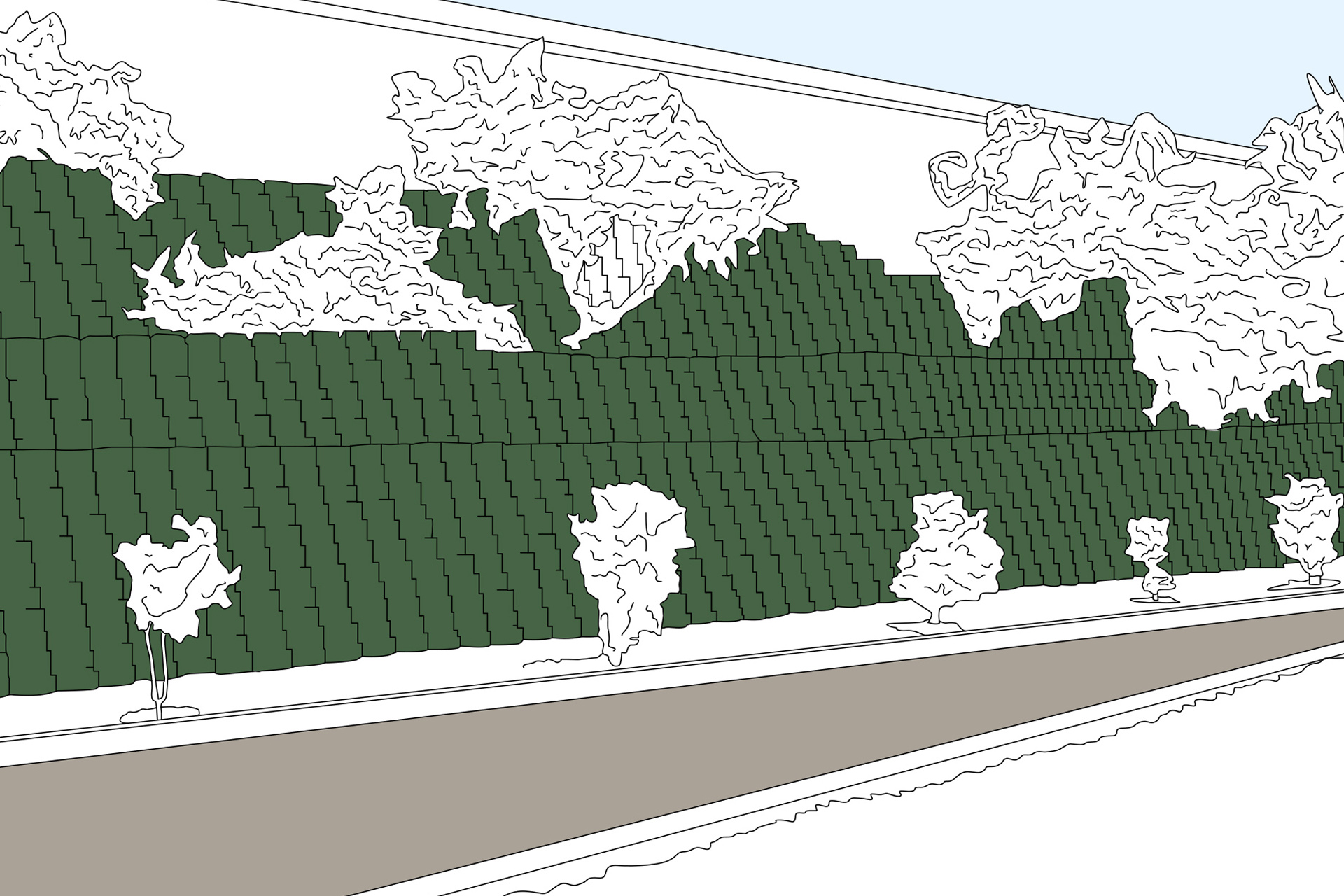

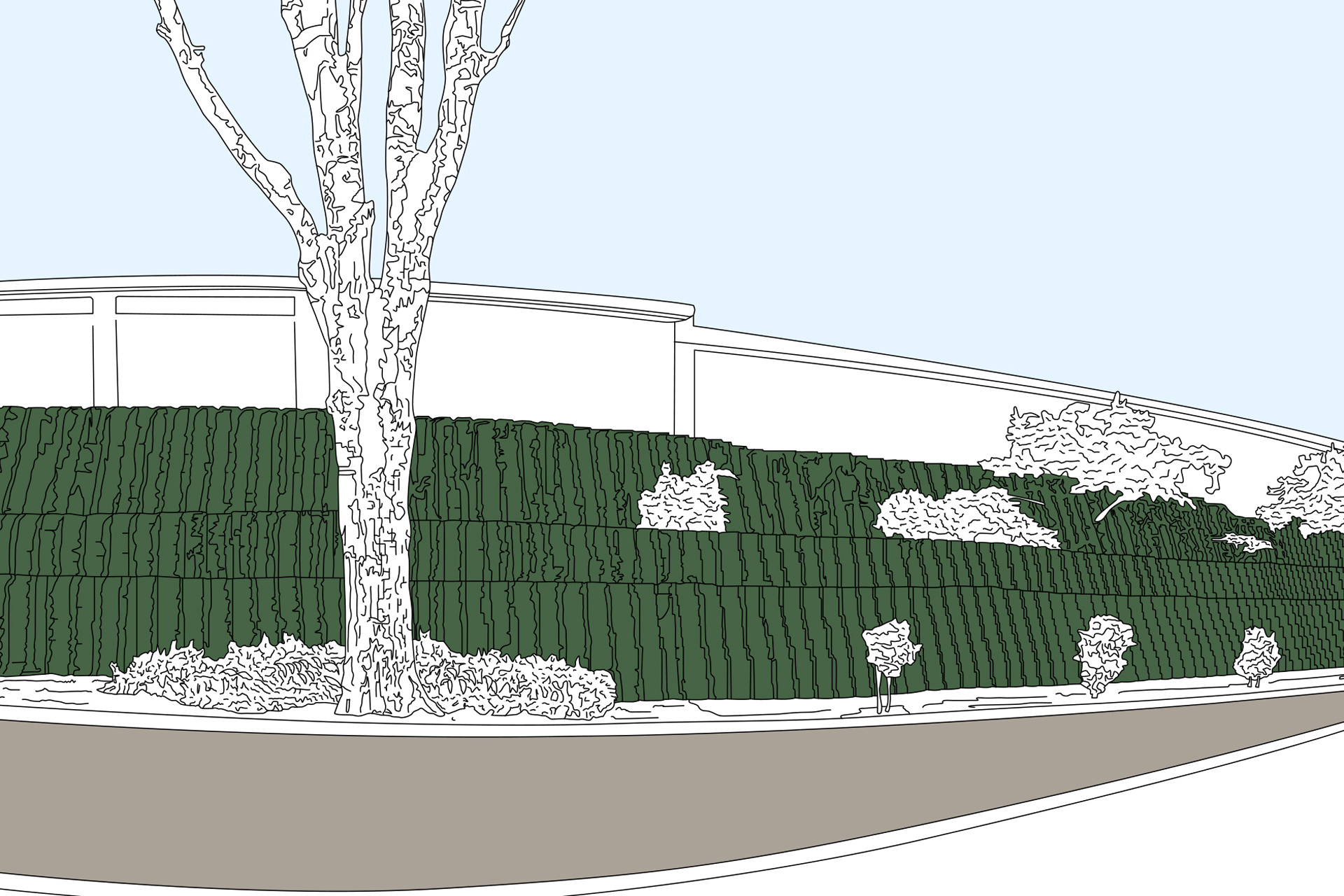

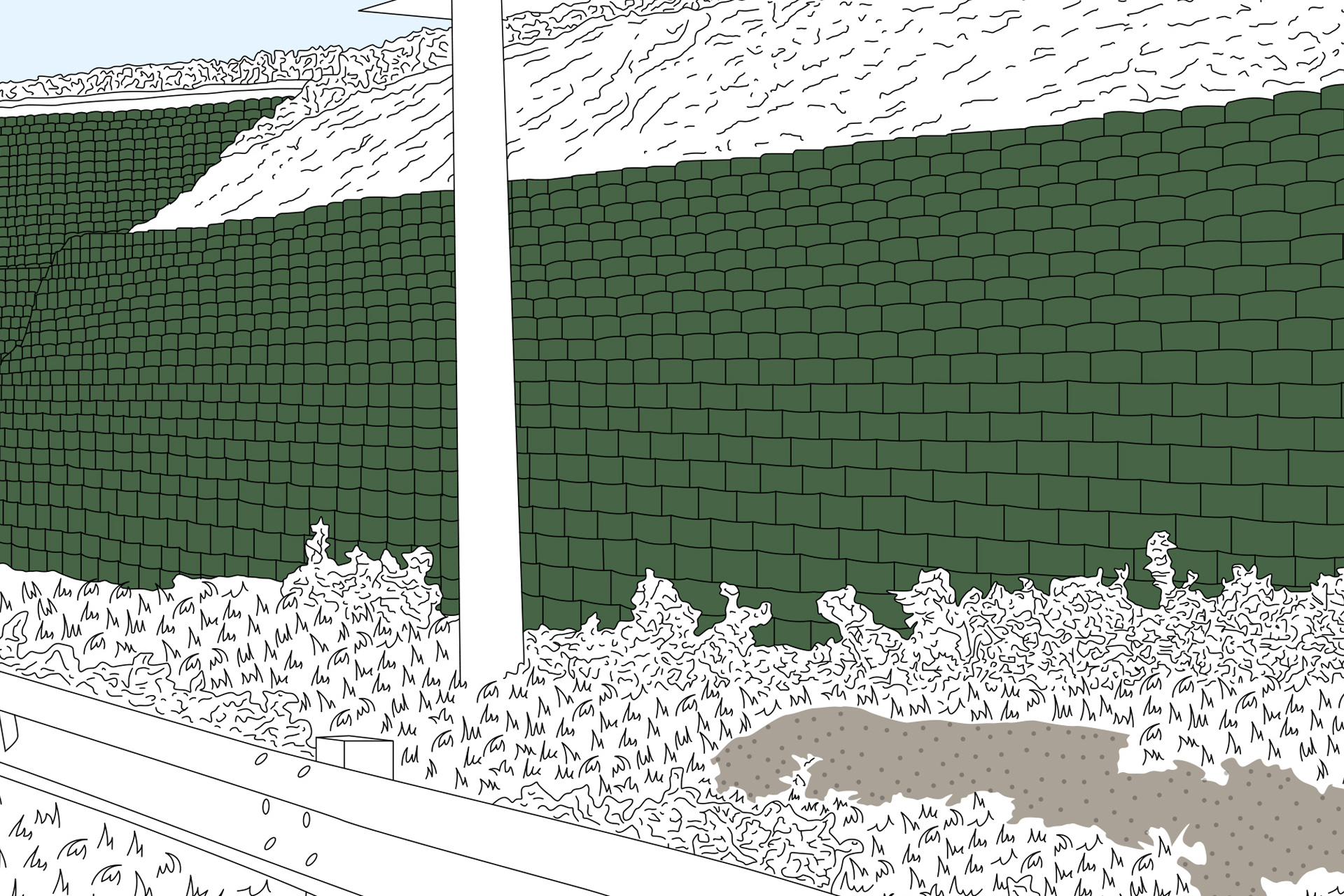

Cell-Max can also be used in retaining walls, the flexible honeycomb matrix is custom made as required by the project engineer. Cell-Max can be easily installed around curves, pipes and other structures. Panels can be constructed with a green or brown front strip to blend in with the surroundings; they can also be stacked to create a 90 degree wall, or staggered to create an exposed cell for vegetation.

Cell-Max is the perfect solution for green walls.
